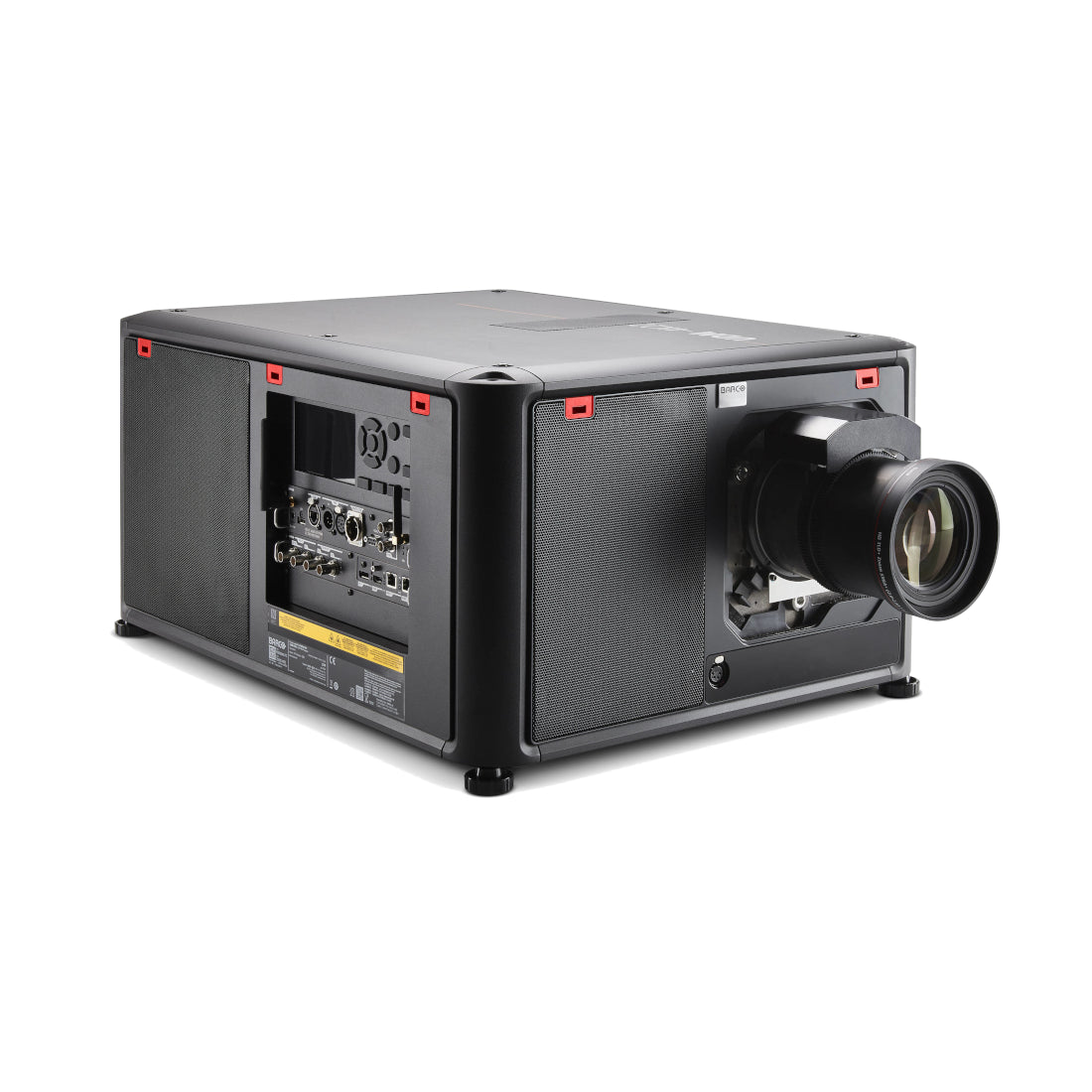

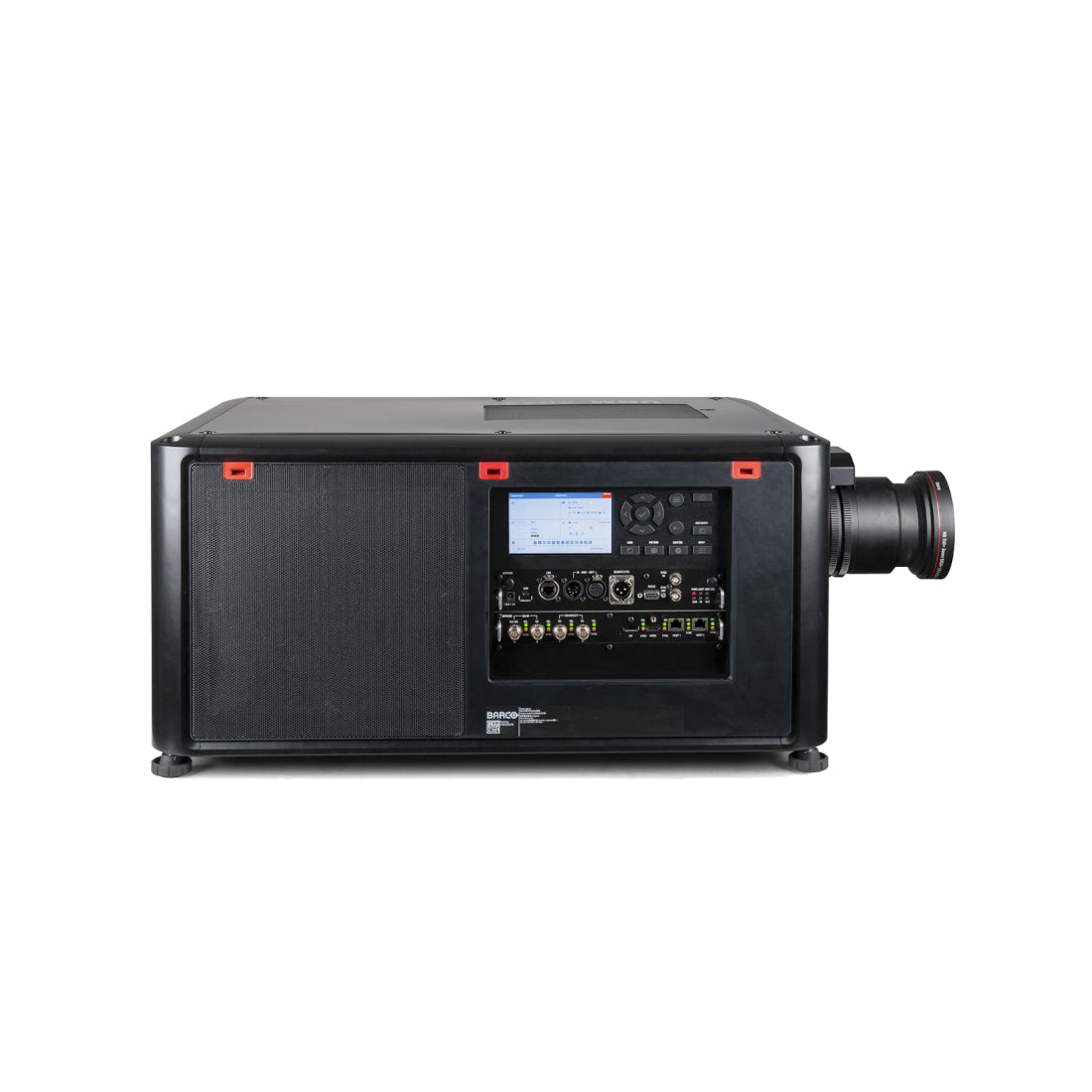

Barco HODR 3 Chip Laser Projector

POA
By Barco

This product is not available for online purchase. Please contact us via phone on +61262474844 or email sales@mirandahifi.com to arrange purchase.
Description

Hodr has a pleasing calm uniform image and is designed for large screens or high ambient light environments.

 Hodr delivers perfect cinematic colors, supporting DCI/P3 color gamut.

Our Hodr features a pleasing and uniform image with the power light up medium to large screens, whilst delivering an unbelievably detailed image with spectacular color fidelity for an unmatched experience that will delight even the most discerning clients.

Features:

  • Illumination
    A unique blue laser phosphor light engine developed by Barco. Blue lasers are selected based on their high density and power efficiency.
  • Warp to Center
    Unique to Barco Residential, Warp to Centre allows instant switching between different aspect ratios within our 16:9 projector models, eliminating the need for slow lens memory pre-sets.
  • DynaBlack
    DynaBlack is Barco’s new dynamic contrast enhancement feature, analyzing each frame on the fly and adjusting contrast dynamically for dark and bright scenes accordingly.
  • Warp & Blend
    Warping is the process of digitally manipulating an image to compensate for alignment distortions. Blending allows multiple projectors to be seamlessly combined to create unique digital canvas solutions.
  • Prospector
    Barco’s web interface: Prospector, provides quick and simple configuration and calibration of Pulse projectors, along with monitoring and diagnostic tools.
  • RealColor
    RealColor is Barco's proprietary color management system, enabling simple and accurate calibration to your desired color gamut or white point.

Single Step Processing SSP™

Pulse is a hardware and software based platform that simplifies the signal allowing it to transmit from source to screen much faster and more efficiently.  We use an advanced image processing technique to display the image on the screen without any artefacts and with the lowest possible processing lag (<20ms with all image processing), this is made possible by our Single Step Processing (SSP™).

State of the art electronics

All new Pulse electronics have been designed to process 4K with HDMI 2.0a and HDCP 2.2 and the optical engine utilises the very latest 0.9" DMD DLP chipset, delivering 3,840 x 2,160 pixels to screen.

Hodr also features HDR, motorised lenses and Barco’s unique RealColor processing, enables simple and accurate calibration to any desired color standard or white point.

Building Blocks

Hodr offers 4K UHD resolution (3,840 x 2,160) for superb image quality. Thanks to its modular design of only five building blocks, Hodr is easy to service.

Laser Light Source

Outstanding image quality also requires an exceptional light source which is why we designed Hodr with a brand new laser engine, significantly improving image uniformity (95%) over its predecessor. Hodr uses custom selected lasers to secure that we can deliver DCI/P3 color gamut. Lasers last longer than traditional projector lamps, are not as fragile and offer nearly instant on/off.

Specifications:

Projector type Three chip DLP
Technology
3 x 0.90" DMD™ with sealed core
Resolution 3,840 x 2,160 (4K UHD)
Aspect ratio 1.78:1 (16:9)
Light source Laser phosphor
Light source lifetime
Up to 20,000
Light output Up to 7,500 ANSI Lumems
Dimable to 4,000 lumens
CLO (constant light output)
Yes
Contrast ratio 20,000:1 (with DynaBlack enabled)
2,000:1 Sequential
600:1 ANSI
Brightness uniformity >90%
Lens range (R9801661) - TLD+ (0.41:1) - 90 Degree Lens
(R9862001) - TLD+ (0.73 - 0.94:1) - 90 Degree Lens
(R9801414) - TLD+ (0.92 - 1.33:1)
(R9862005 ) - TLD+ (1.24 - 1.56:1)
(R9862010) - TLD+ (1.49 - 2.02:1) *
(R9862020) - TLD+ (2.01 - 2.76:1) *
(R9862030) - TLD+ (2.69 - 4.41:1) *
(R9862040) - TLD+ (4.37 - 7.35:1) *
(R9829997) - TLD+ (6.95 - 10.83:1)

* Standard Lens Option(s)
Optical lens shift Up to 73% vertical lens shift & up to 28% horizontal lens shift (depending on lens selection)
Visit the Barco Residential Lens Calculator for further information
Download Lens & Airflow Data Here
Optical dowser
Yes
Color correction P7 RealColor™
Color gamut Up to DCI (P3)
Image processing Embedded Warp & Blend Engine
WARP 4-Corner Warp & Bow Correction via Warp Engine
Orientation 360° Rotation
Network connection 10/100 Ethernet via RJ45 connection
HDR HDR10
3D Active Stereoscopic 3D
Additional hardware required please contact an authorized Barco representative for details
Inputs 1 x HDMI 2.0 (HDCP 2.2)
2 x HDBaseT (HDCP 1.4 - 9Gbps only)
1 x Display Port 1.2
Quad 3G / 12G SDI / BarcoLink
1 x RJ45 Ethernet
1 x RS232
1 x USB
2 x DMX (1 x Input / 1 x Output)
1 x XLR for Wired Remote
2 x 3D Sync (1 x Input / 1 x Output)
Optional Upgrade: Quad DP1.2)
Input resolutions
From VGA up to 4K (4,096 x 2,160) @ 120Hz
Latency TBD
Control IR, RS232, IP, 12v Trigger
Driver modules available for: Crestron, Control4, RTI & Savant
WiFi (Optional), XLR Wired Remote, GSM (Optional)
Power requirements 110 - 130V / 200 - 240V / 50 - 60Hz
Power consumption 110V: 1,321W Max, measured in 20-25°C / 68-77°F

230V: 1256W Max 20-25°C / 68-77°F

Power consumption will increase if ambient temperatures increses above 25°C / 77°F
Noise level (typical at 25°C/77°F)36 dB(A) 43 dB(A)
Operating temperature
0 to 40 °C at Sea Level
Optimal Set Point: 20 °C
Operating humidity
0 to 80% (relative humidity)
BTU per hour Max. 4,288 BTU/h @ 200 - 240V
Max. 4,516 BTU/h @ 110 - 130V
Airflow requirements

Air Inlet (from Rear w/Feet Down): Front / Top / Right
Exhaust (from Rear w/Feet Down): Rear
Clearance Requirements:
Front: 40cm
Left: 1cm
Right: 40cm
Rear: 40cm
Top: 40cm

Exhaust airflow 152 ft3/min @ 25 °C
258 m3/hour @ 25 °C
Dimensions (WxLxH) Excluding Lens
540 x 725 x 355 mm
21.26 x 28.54 x 14 in.
Weight Excluding Lens
48kg / 105bs
Shipping weight TBD
Standard accessories
Power Cord / Remote Control
Certifications CE, FCC Class A and cCSAus
Warranty Limited 3 years parts and labor
Extendable up to 5 years
Safety requirements This projector may become Risk Group 3 (RG3) when an interchangeable lens with throw ratio greater than 2.3 is installed.
Refer to the installation manual for further information.
* Firmware upgradable
Please contact an authorized Barco representative for details
