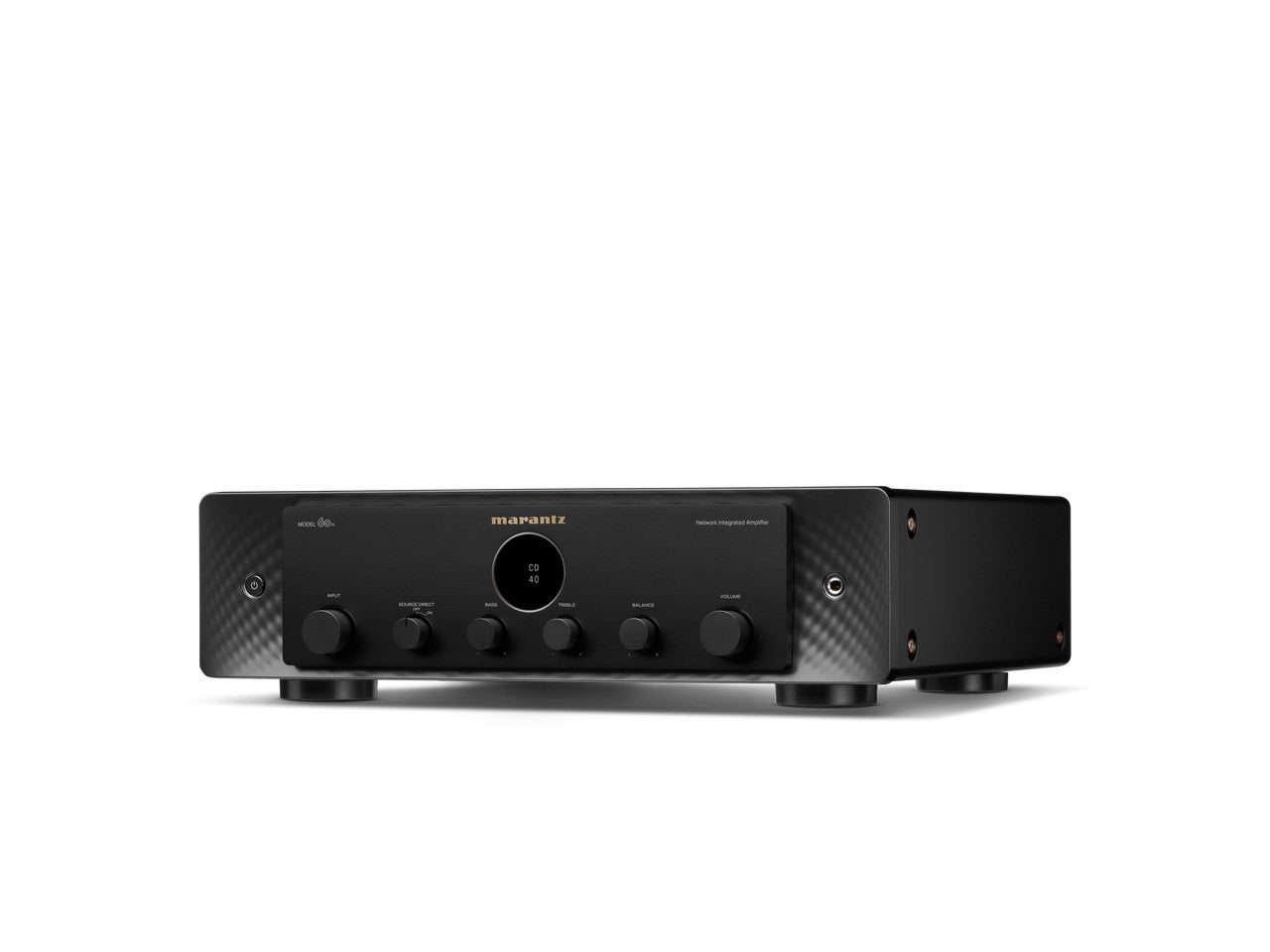

MODEL 60n is a network integrated amplifier engineered for exceptional hi-fi performance and comprehensive connectivity.
"Model 60n is an eye-catching addition to any setup–but it’s the authenticity when portraying music that seals the deal."
EISA Award 2025
Superb Marantz Sound
Sound Master tuned and engineered to bring you all the texture, nuance, and clarity of the Marantz signature sound.
High Resolution Streaming
Stream in high-resoultion from today’s most popular music services, including TIDAL, with HEOS® Built-in.
Build Your Hi-Fi System
Wide range of connections, including for a CD player and turntable, enable you to build a comprehensive hi-fi system.
Enhanced TV Sound
Enjoy superior TV sound for your favorite movies and shows and enhance your gaming experience with MODEL 60n’s HDMI ARC connection.
Marantz Industrial Design

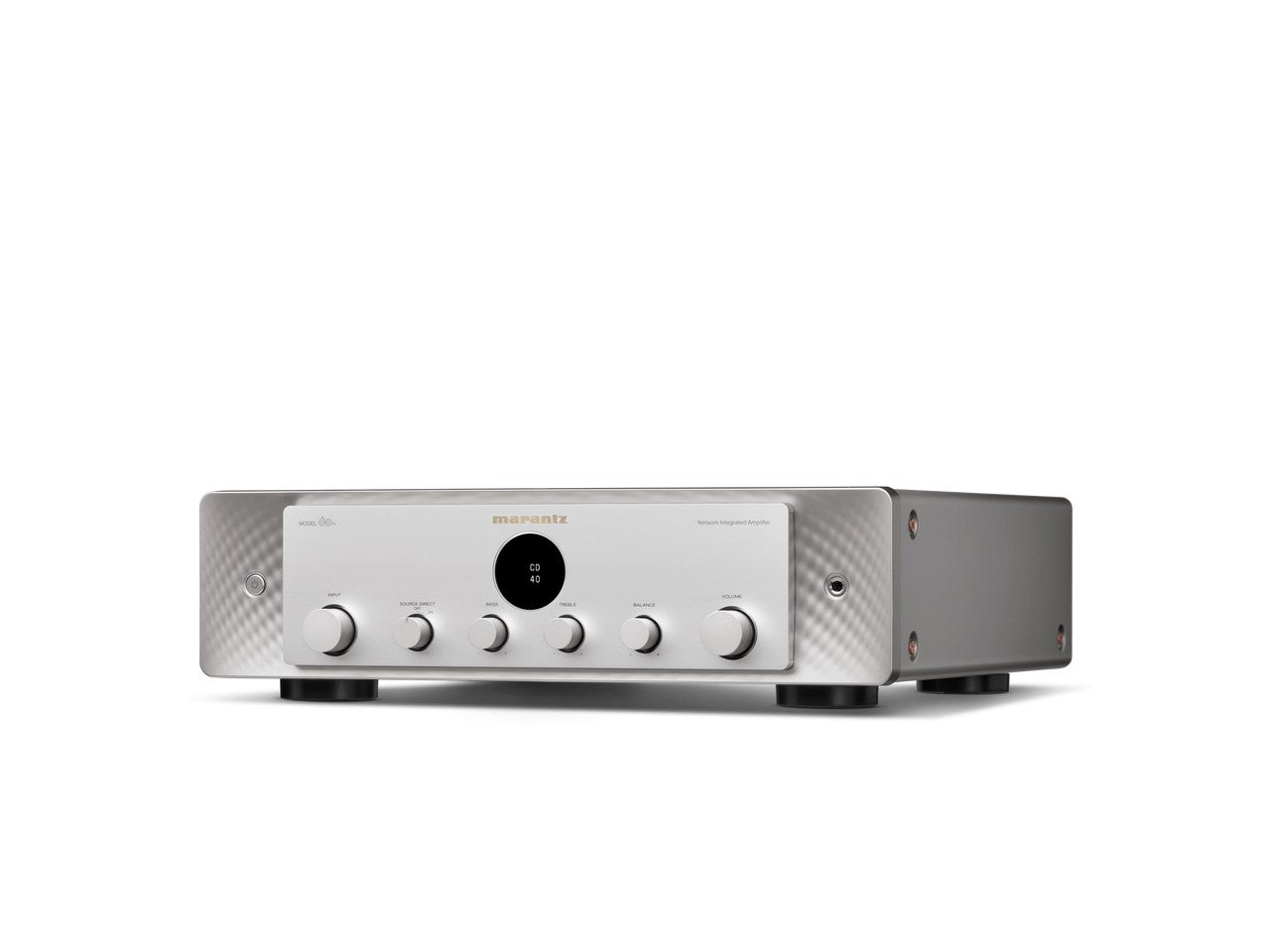

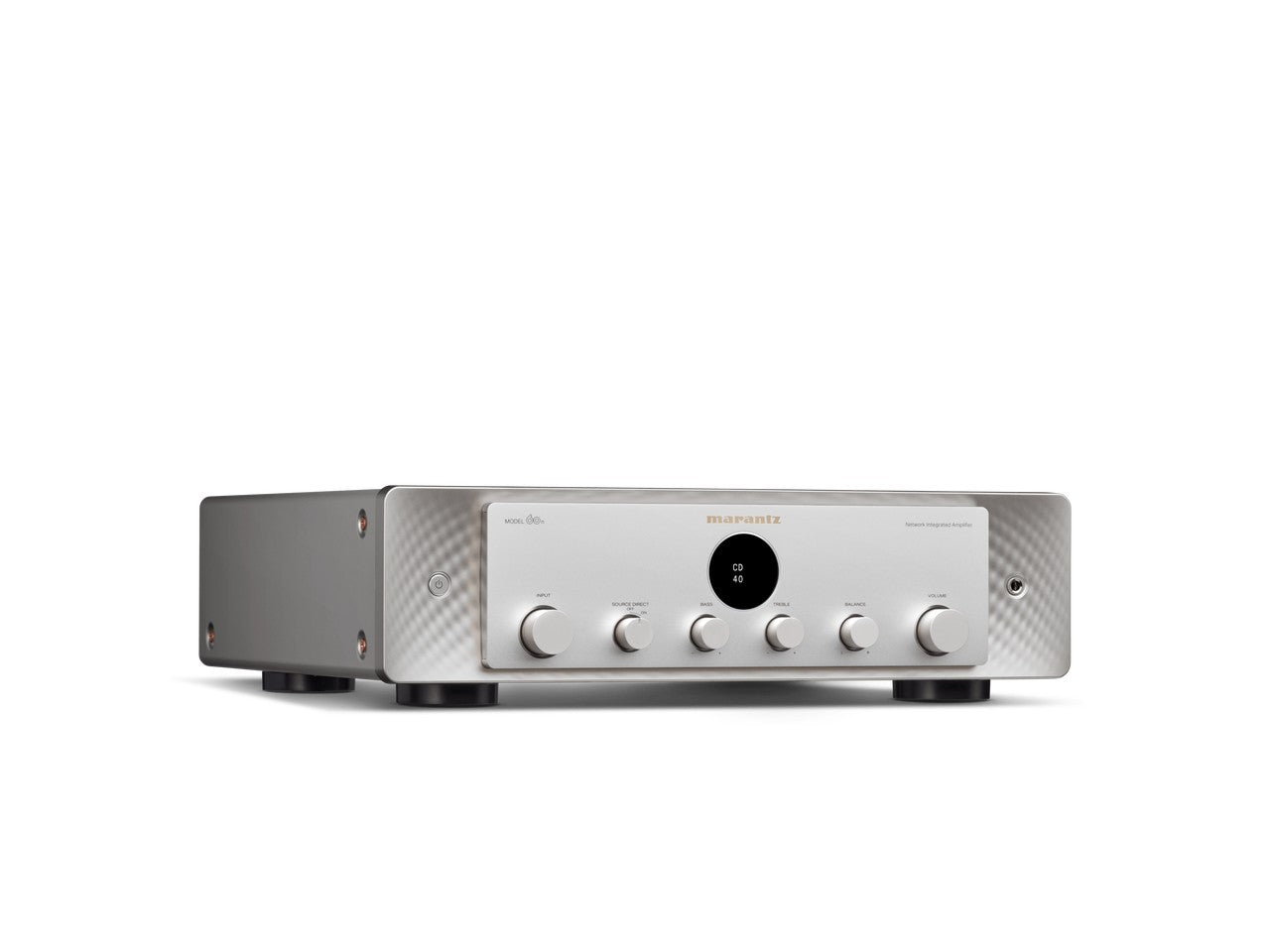

Intuitive operation, designed with robust yet refined materials and available in two colorways: black and silver-gold.
Details & Specifications
Amplifier
| Channels |
2
|
| PSU Transformer |
Toroidal
|
| Speaker A / B |
No |
| Speaker Terminals |
Marantz SPKT-1+
|
| Number of Terminals |
2 |
| Power Output (8 / 4 Ohm RMS) |
60 W / 80 W
|
| Topology |
Class A/B
|
Audio Components and Technologies
| Current Feedback Topology |
Yes |
| HDAM Version |
SA3, SA2
|
| High Grade Audio Components |
Yes |
| Customised Components |
Yes |
| Symmetric PCB Layout |
Yes |
| Aluminium Extrusion Heat Sink |
Yes |
| Copper Plated Chassis |
No |
| Marantz Musical Digital Filtering |
No |
| Linear Drive Power Supply |
Yes |
| BI-AMP and Multichannel Option |
No |
| Shottky Diodes |
Yes |
Control
DAC
| Digital Inputs |
Coaxial, Optical, USB-A |
| Max PCM Sample Rate |
192 kHz / 24-bit
|
| Max DSD Sample Rate |
DSD 4X (11.2 MHz)
|
| HDMI |
1 ARC
|
HEOS
| Streaming Technologies |
Bluetooth, Airplay 2, Roon Ready, Spotify Connect, Tidal Connect |
| Streaming Services (subject to change and local availability) |
Tidal (Hi Res), Deezer (Hi Res), Amazon Music HD, Pandora, TuneIn, iHeartRadio, SoundCloud, SiriusXM, AWA, Mood:Mix, Qplay, Sony HiRes
|
| HEOS Multiroom and Streaming |
Yes |
| Lossy Formats |
MP3, WMA, AAC
|
| Lossless Formats |
DSD/DSF, FLAC, ALAC, WAV |
| Gapless Playback |
Yes
|
| HEOS App |
iOS, Android
|
Network
| Wi-Fi / Wired LAN |
Yes / Yes |
Other
| Display |
Low-Noise OLED Monochrome |
Preamp
| Phono EQ |
MM Standard |
| Tuner: FM / AM |
No |
| Audio Adjustments |
Yes |
| Power Amp Direct |
No |
| Balanced In / Out |
No/No |
| Preamp Outputs |
1 |
| Subwoofer Output |
1 Mono |
| Headphone Out |
Yes |
Specifications
| Frequency Response |
5 Hz-100 kHz |
| Total Harmonic Distortion |
0.02 %
|
| Damping Factor |
100<
|
| Input Sensitivity: MM |
1.9 mV / 47 kOhm
|
| Signal to Noise Ratio: MM/MC |
87 dB / -
|
| Input Sensitivity: High Level |
190 mV / 20 kOhm
|
| Signal to Noise Ratio: High Level |
113dB
|
| Treble Control |
± 10 dB at 15kHz
|
| Bass Control |
± 10 dB at 50Hz
|
| Metal Front Panel |
Yes |
| Power Consumption in W |
220 |
| Standby Consumption in W |
0.3 |
| Auto Power Off |
Yes |
| Detachable Power Cable |
Yes |
| Remote Control |
RC006PM
|
| System Remote Function |
Yes |
| Maximum Dimensions (W x D x H) mm |
442 x 431 x 129
|
| Carton Maximum Dimensions (W x D x H) mm |
527 x 517 x 255
|
| Carton Weight (inc. product) in kg |
15.5 |
| Maximum Dimensions (W x D x H) in |
17.4 x 17 x 5.1
|
| Weight in LBS |
28.1 |
| Carton Maximum Dimensions (W x D x H) in |
20.8 x 20.4 x 10.1
|
| Carton Weight (inc. product) in LBS |
34.3 |
